Overview

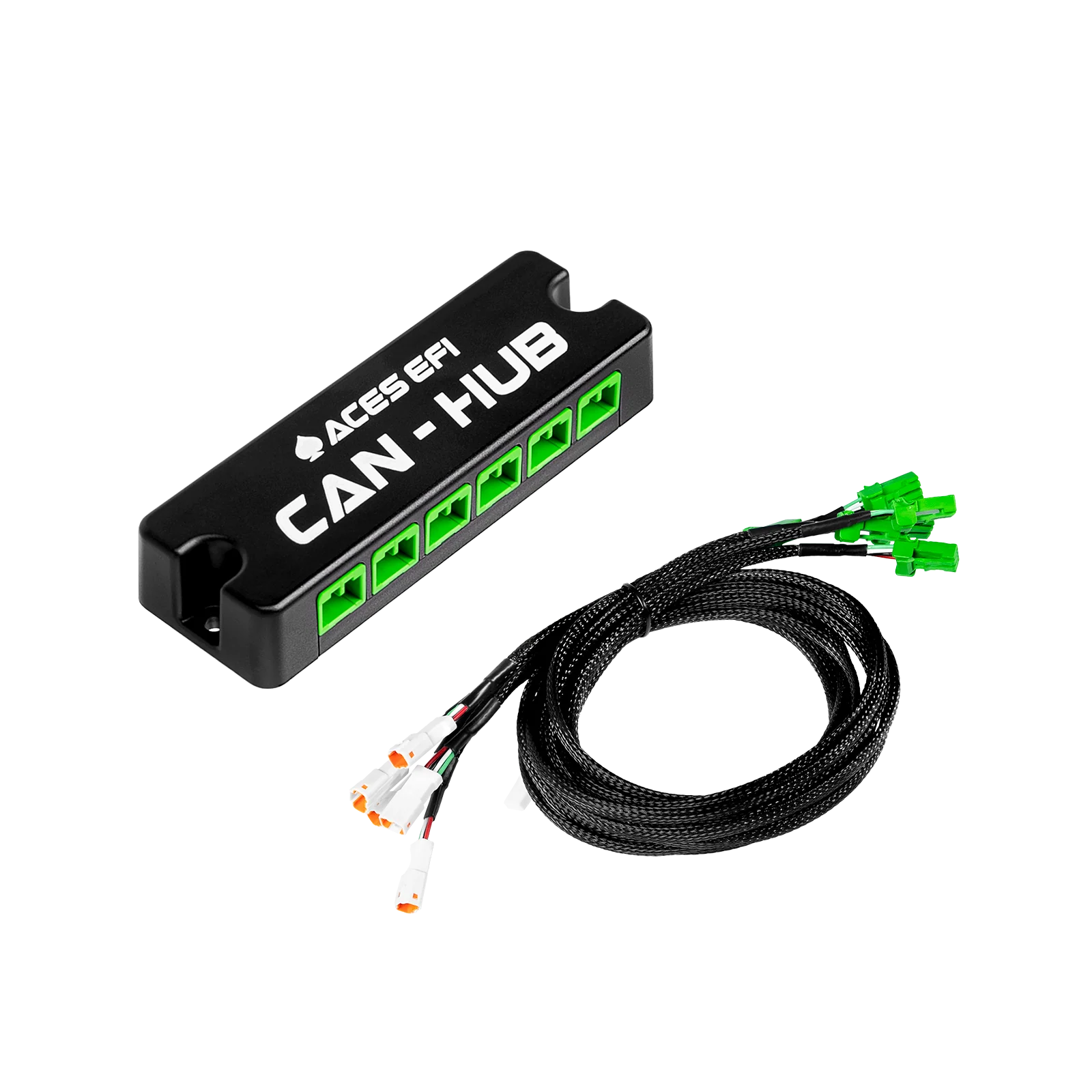

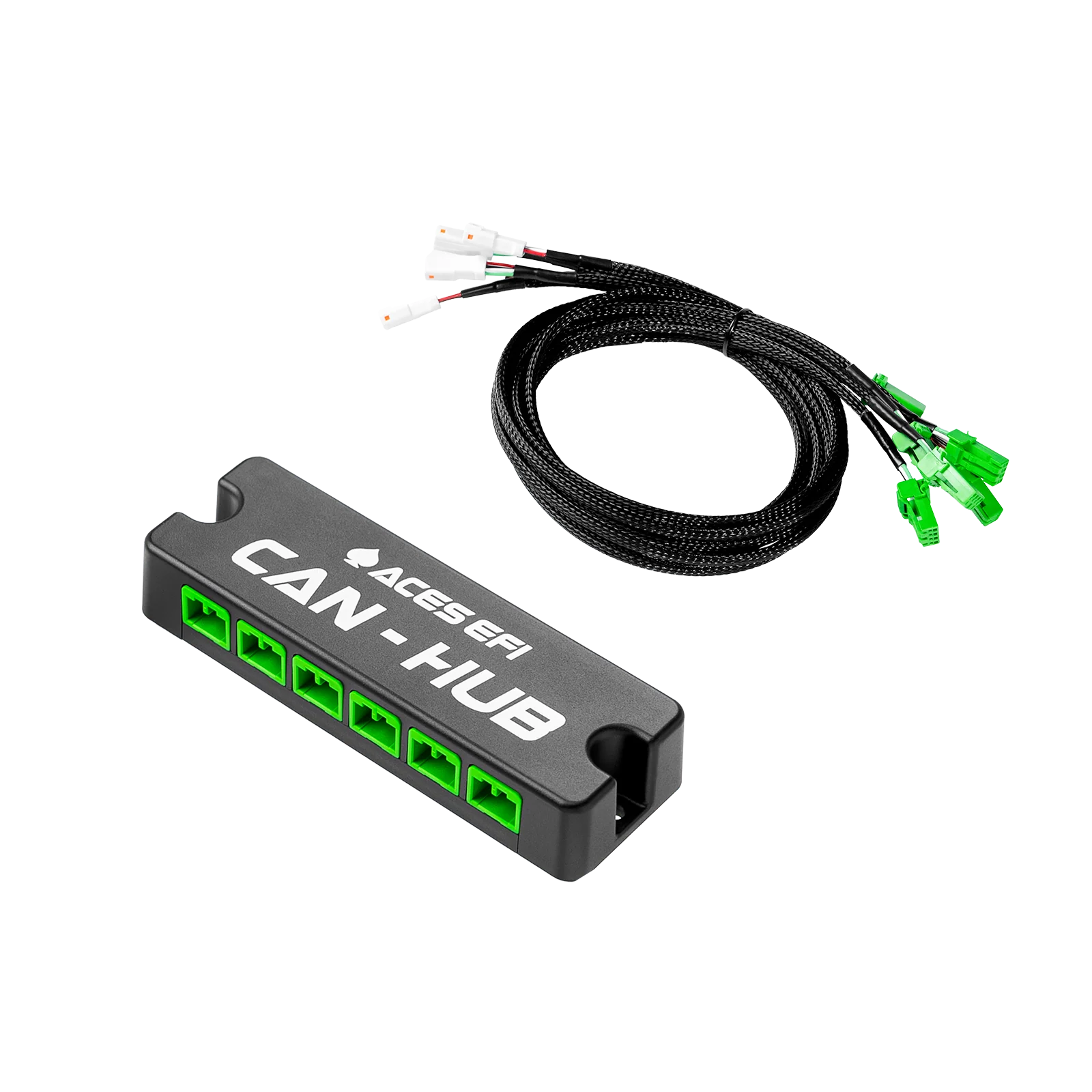

The Aces CAN Hub is designed to extend and simplify connectivity within the Aces EFI ecosystem. The module interfaces with the standard 4-pin CAN bus port available on all Aces ECUs to allow simultaneous access from either one handheld, Bluetooth module, or laptop.

Technical Specifications

Function:
Expands one Aces CAN port into multiple CAN tap points.

Input/Output:

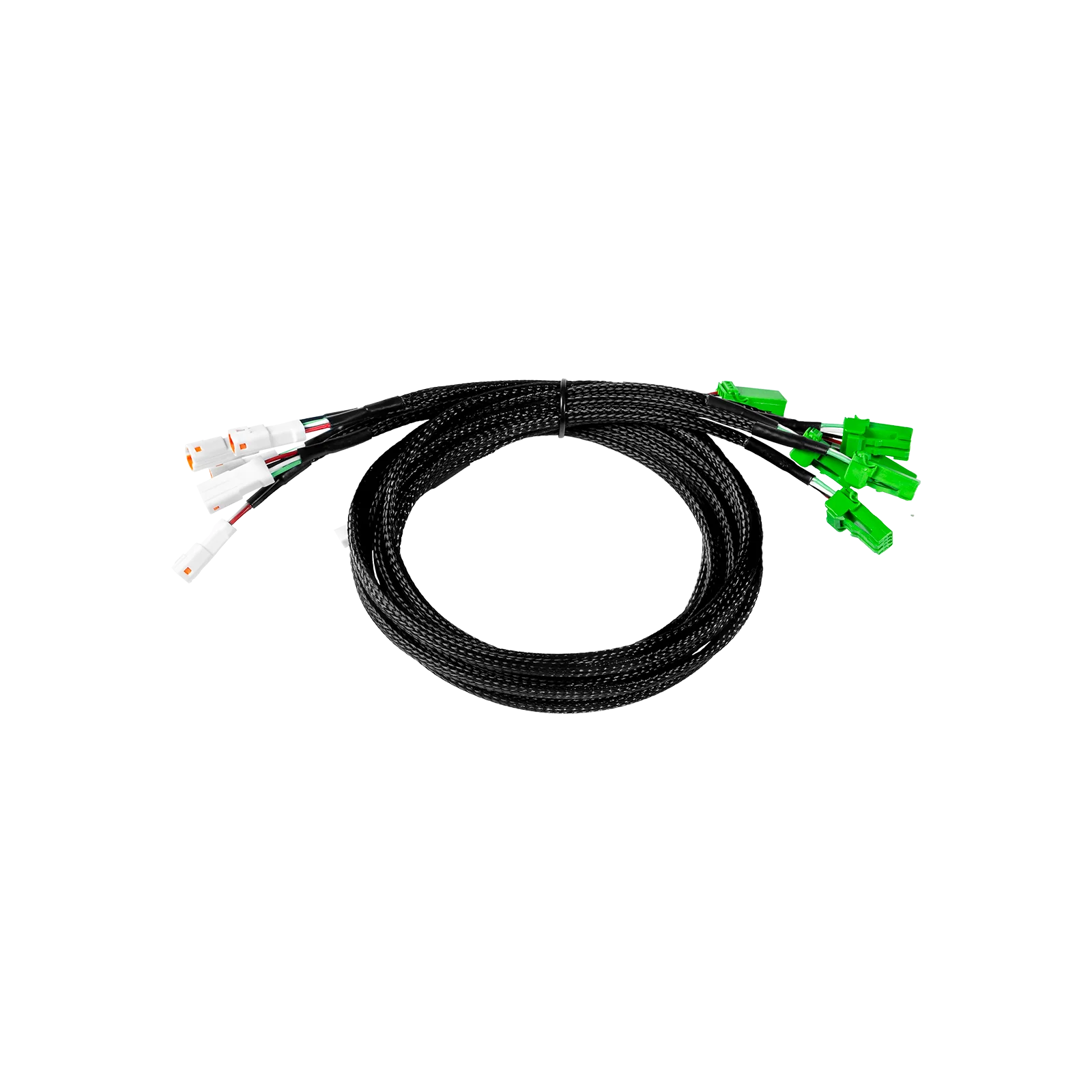

1x Male CAN input, 2–4x Female CAN outputs (varies by revision).

Supported Protocol:
CAN 2.0B, standard Aces communication.

Voltage Range:
12V (powered via CAN bus).

Termination:
Internally terminated CAN Bus

Physical Dimensions:
~1200mm x 400mm panel layout footprint.

Enclosure:
Sealed ABS.

Use Case Examples

• Race car tuning setups where multiple CAN devices must be online simultaneously (e.g., handheld tuner + QuickDraw).
• Mobile diagnostics via BT-Module in remote tuning support scenarios.
• Display system integration with future Aces CAN dash or data broadcast tools.
